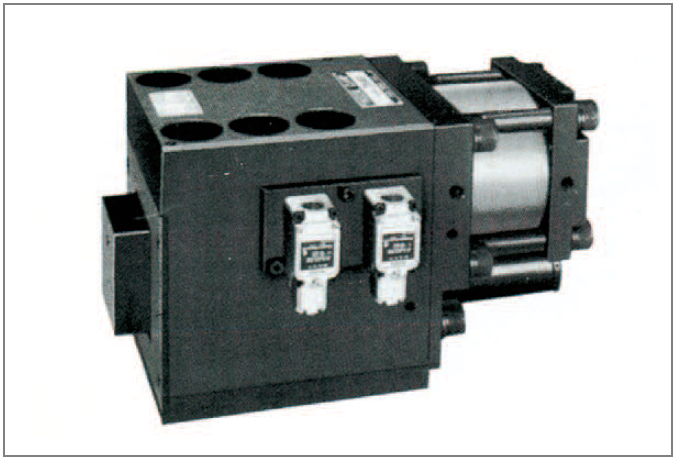

TK SERIES

Description

◆Feature

•This type is used main for the injection molding machines of 1000T or above.
•It has strong clamping force and safety feature that supports the die firmly even
in case of zero hydraulic pressure.
•Only while clamping the clamp jaw comes out. When releasing. the jaw retreats
into the clamp body.
•This type is adequate for the Medium-large size injection molding machine

◆Shape & Measure

◆Circuit diagram

◆Type & Specification

Type			TK16	TK25	TK40
(TON) Clamping force		(Hydraulic 140kg / ㎠)	5TON	8TON	14TON
(TON) Supporting force		(Hydraulic 140kg / ㎠)	Normal 15 TON (Maximum 20 TON)	Normal 25 TON (Maximum 31 TON)	Normal 40 TON (Maximum 50 TON)
		(Hydraulic 0kg / ㎠)	2TON	3TON	5TON
Full stroke(㎜)			4.5	4.5	5.5
Clamp stroke(㎜)			2	2	2.5
Safety stroke(㎜)			2.5	2.5	3
Required quantity of oil(㎖)			284	460	859



Type	E	L	M	N	R	U	S	V	W	K	X	Y	Z	H
TK 16	H + 140	30	300	20	145	65	98	22	39	35	M20	2	2.5	MIN.40
TK 25	H + 170	30	355	20	175	76	118	27	49	47.5	M24	2	2.5	MIN.50
TK 40	H + 200	33	420	25	215	90	145	32	60	53.5	M30	2.5	3	MIN.50
