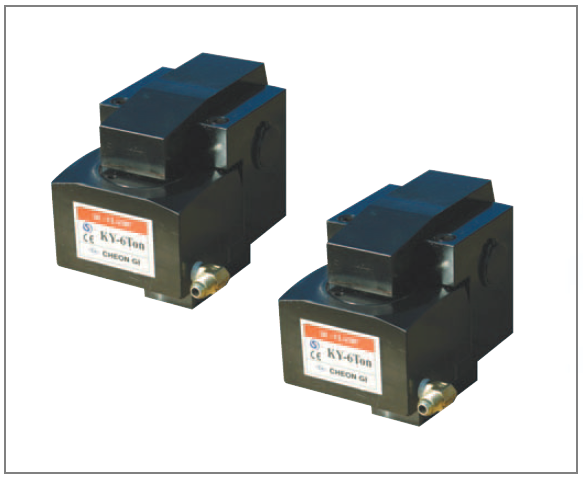

KY SERIES

Description

◆Structure & Features
When clamping

When un-clamping

With the single-acting Cylinder structure, the hydraulic pressure works while clamping, and
the spring allow restoring while unclamping.
•The applied pressure is firstly raised in proportion to the area of the Cylinder and secondly
raised by the lever.
•There are a movable type in which the Press bolster or the slide moves along the T-slot and
a fixed type of the Flange type.
•Since the Cylinder part and the lever part are separated, a uniform force is applied on the Tslot
shape & measure.

◆Appellation
KY ① – ② – ③ – A

①Nominal clamping Force
2	2ton
4	4ton
6	6ton
10	10ton
16	16ton
25	25ton

② Installing Method
T	T홈 이동식

③ Clamping Height : L(mm)

◆Common item

Type Specification	KY2	KY4	KY6	KY10	KY16	KY25
Internal Pressure(kgf/㎠)	275
Maximum Pressure(kgf/㎠)	185
Normal Clamping Force(ton)	2	4	6	10	16	25
Stroke(mm)	5	6	7	8	8	9
Require quantity Oil(ml)	6.8	12.5	25.8	59	80.5	134
Applicable temperaturerange(℃)	-5 ~ 60℃

◆Shape & Measure
◆T-slot measure
Be sure to indicate the T-slot Measure(Make the
measure of C with the unit of 0.1mm tolerance.
Therefore, the measure becomes C ±0.1)

◆Clamp T-slot measure

A = -1
B = -2
C = +0.5
D = -1

a : When clamping

b : When un-clamping

금형높이 형식		25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100	105	110	115	120	a	b	E	E1	F	G	L	J	Q
KY 2	CLAMP총높이(H1)	76																				2	2.5	14	20	70	30	86	15	45
KY 4		—	84				금형높이(H)에 의해 (H1)의 높이가 변경됨.															3	2.5	16	21	78	40	106	20	61
KY 6		————			104																	4	2.5	18	25	98	50	138	25	80
KY 10		—————–				126																5	2.5	20	28	108	55	160	30	87
KY 16		———————-					145															5	2.5	22	32	138	60	201	35	108
KY 25		———————————-							176													6	2.5	31	41	157	70	259	40	145

These specification can be changed for improvement or other reason without notice.
