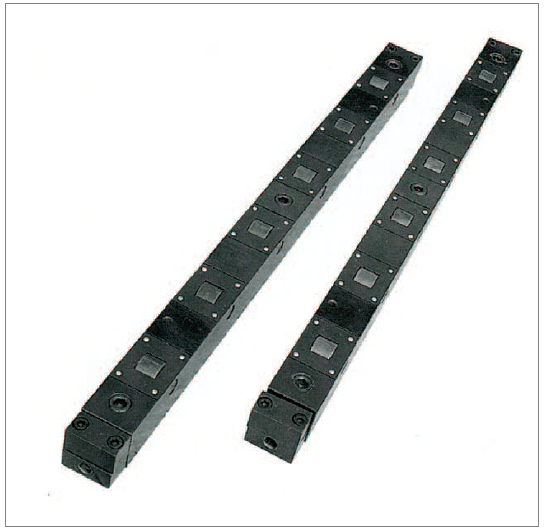

DL70
Description
◆CYLINDER
| ① Overall length of Die Lifter : L(mm) | 500~4000 |
DL70 – ① – A
◆Specifications & Measure
◆Dimension of Die Liter
| Over all lenght of Die Lifer(L) | No. of Cylinders (NC) | No. of Rollers (NP) | No. of Rollers between Cylinders | The allowance weight of minmal number of rollers(kg) | |||||||||||||||||||||
| No. of Rollers(NRP) | |||||||||||||||||||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | ||||
| 500 | 2 | 3 |
3 |
1800 |
|||||||||||||||||||||
| 1000 | 4 | 6 |
2400 |
3000 |
3600 |
※ 1 Nrp is calculated by the following formula. | |||||||||||||||||||
| 1500 | 6 | 9 |
4200 |
4800 |
5400 |
||||||||||||||||||||
| 2000 | 8 | 12 |
6000 |
6600 |
7200 |
NRP= LD -1LD(mm): Length of mold (direction of loading / unloading) PR | |||||||||||||||||||
| 2500 | 10 | 15 |
7800 |
8400 |
9000 |
||||||||||||||||||||
| 3000 | 12 | 18 |
9600 |
10200 |
10800 |
||||||||||||||||||||
| 3500 | 14 | 21 | 11400 | 12000 | 12600 | ||||||||||||||||||||
| 4000 | 16 | 24 | 13200 | 13800 | 14400 | ||||||||||||||||||||
※These specification can be changed for improvement or other reason without notice.
